Abrasive Tools
Flap Discs

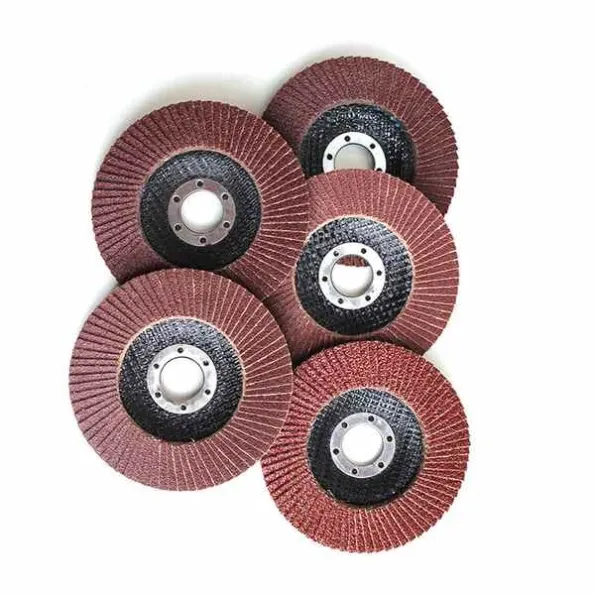

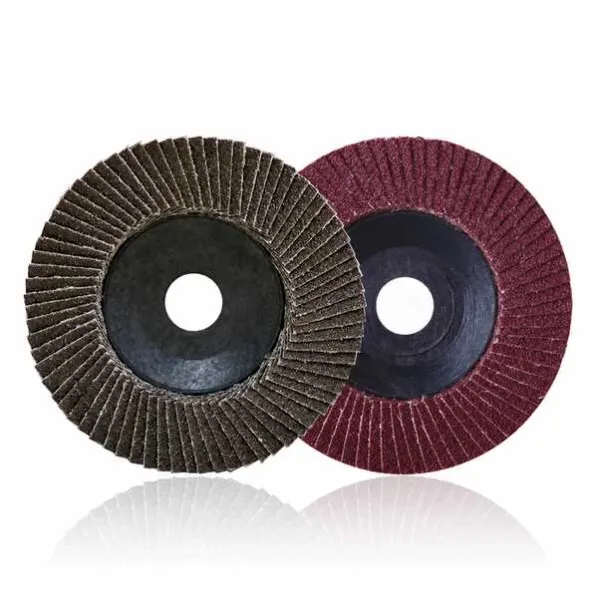

Our flap discs are designed for grinding, weld blending, deburring and surface finishing on metal. Available with aluminum oxide, zirconia alumina or ceramic abrasive grains, as well as T27 flat and T29 conical shapes. Grit sizes, labels and packaging can be customized according to confirmed requirements.
Our flap discs are designed for grinding, blending, deburring and surface finishing with compatible angle grinders.
The overlapping abrasive flaps wear gradually during use, continuously exposing fresh abrasive grain. This construction allows the disc to combine material removal and surface blending in one product.
Different abrasive grains, grit sizes, backing plates and flap configurations can be selected according to the workpiece, application and required finish.
KEY FEATURES
• Overlapping abrasive flaps provide progressive wear
• Suitable for grinding, blending and finishing
• Available in different abrasive grains and grit sizes
• Fiberglass or plastic backing plates available
• T27 flat and T29 conical shapes available
• Custom labels and packaging options available
ABRASIVE OPTIONS
Aluminum Oxide
A practical option for general-purpose grinding, cleaning and finishing applications.
Zirconia Alumina
Suitable for demanding metalworking applications where faster material removal and longer product life are required.
Ceramic Abrasive
Designed for higher-performance applications requiring efficient cutting and extended abrasive life.
APPLICATIONS
• Weld grinding and blending
• Deburring and edge preparation
• Beveling and chamfering
• Rust, paint and scale removal
• Surface preparation
• Finishing and blending
• General metal fabrication and maintenance
SUITABLE MATERIALS
Available formulations can be selected for:
• Carbon steel
• Mild steel
• Stainless steel
• Cast iron
• Aluminum and selected non-ferrous metals
DISC SHAPES
T27 Flat
Designed mainly for flat surfaces, outside edges and finishing at lower working angles.
T29 Conical
Designed for more aggressive stock removal, beveling and contour work at higher working angles.
AVAILABLE SPECIFICATIONS
Diameter: According to confirmed model
Bore Size: According to machine requirements
Grit Size: Available according to application
Disc Shape: T27 flat or T29 conical
Abrasive Grain: Aluminum oxide, zirconia alumina or ceramic abrasive
Backing Plate: Fiberglass or plastic
Maximum RPM: Marked according to disc size and confirmed specification
CUSTOMIZATION
Disc specifications, abrasive type, grit size, backing plate, labels and packaging can be customized subject to technical requirements and order quantity.
Neutral labels and packaging are also available for customers developing their own product ranges.
PACKAGING
Available packaging options include shrink wrapping, individual boxes, color boxes, round metal tins and export cartons. Packing quantities and carton details are confirmed according to disc size and order requirements.
SAFETY INFORMATION
Always verify that the flap disc diameter, bore and maximum operating speed are compatible with the angle grinder. Use the correct guard and wear suitable eye, face, hearing and body protection.
Inspect the disc before use. Do not use damaged, wet or incorrectly installed products, and never exceed the marked maximum RPM.
